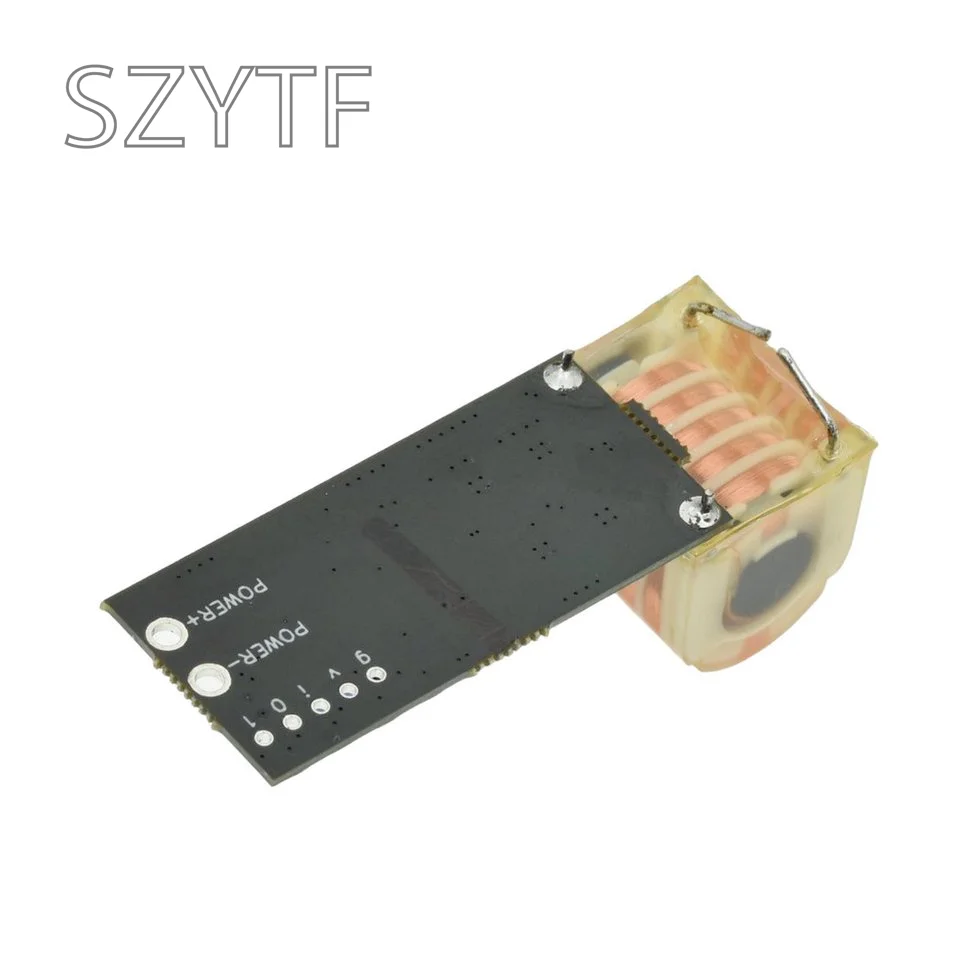

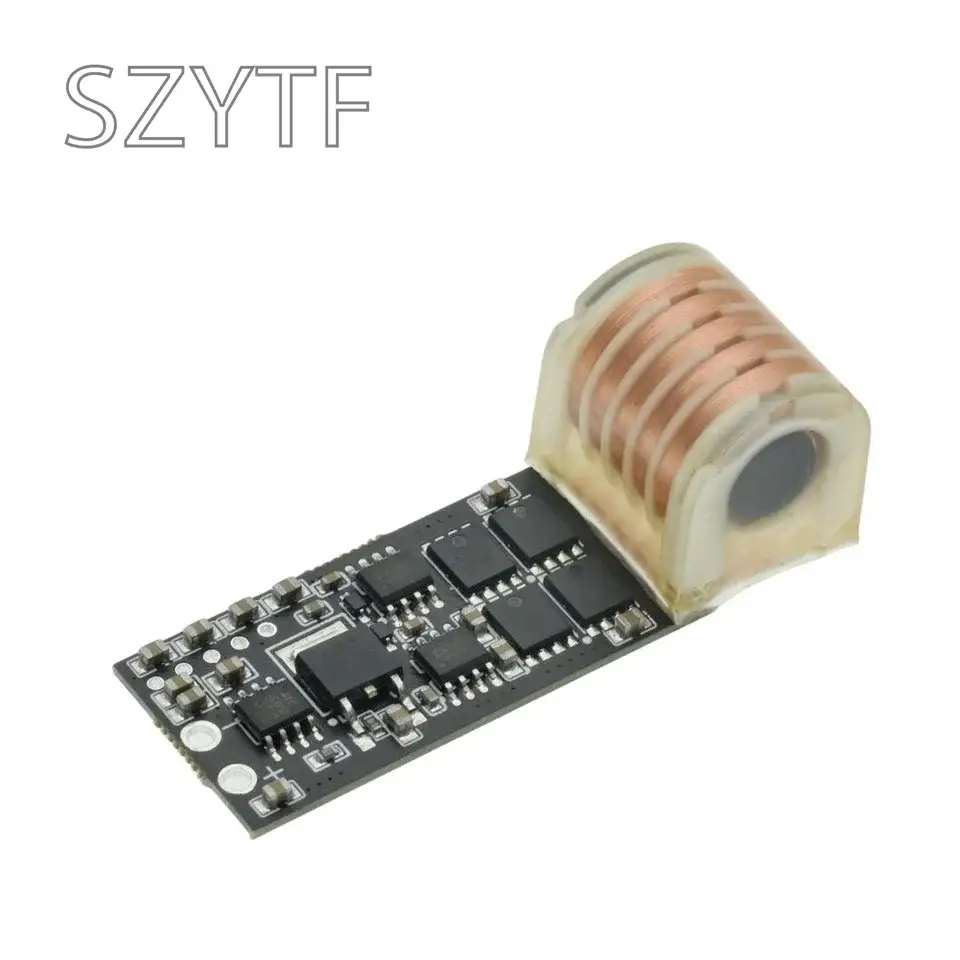

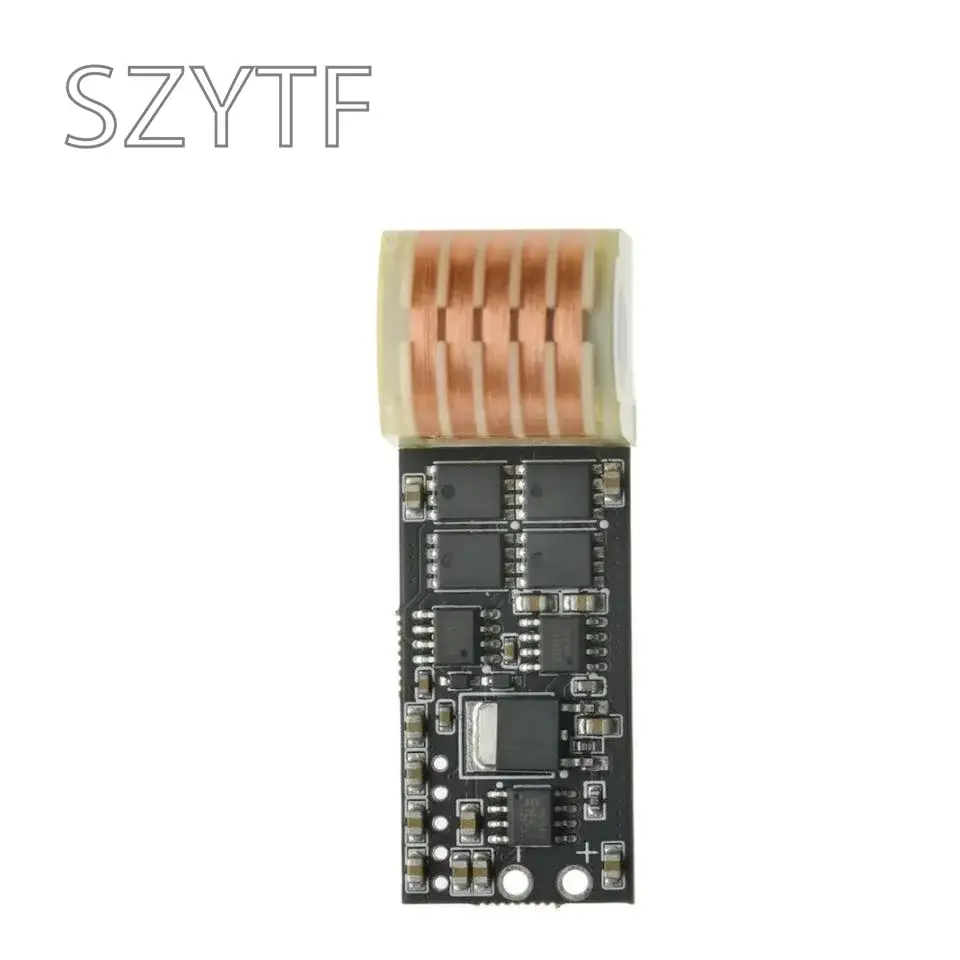

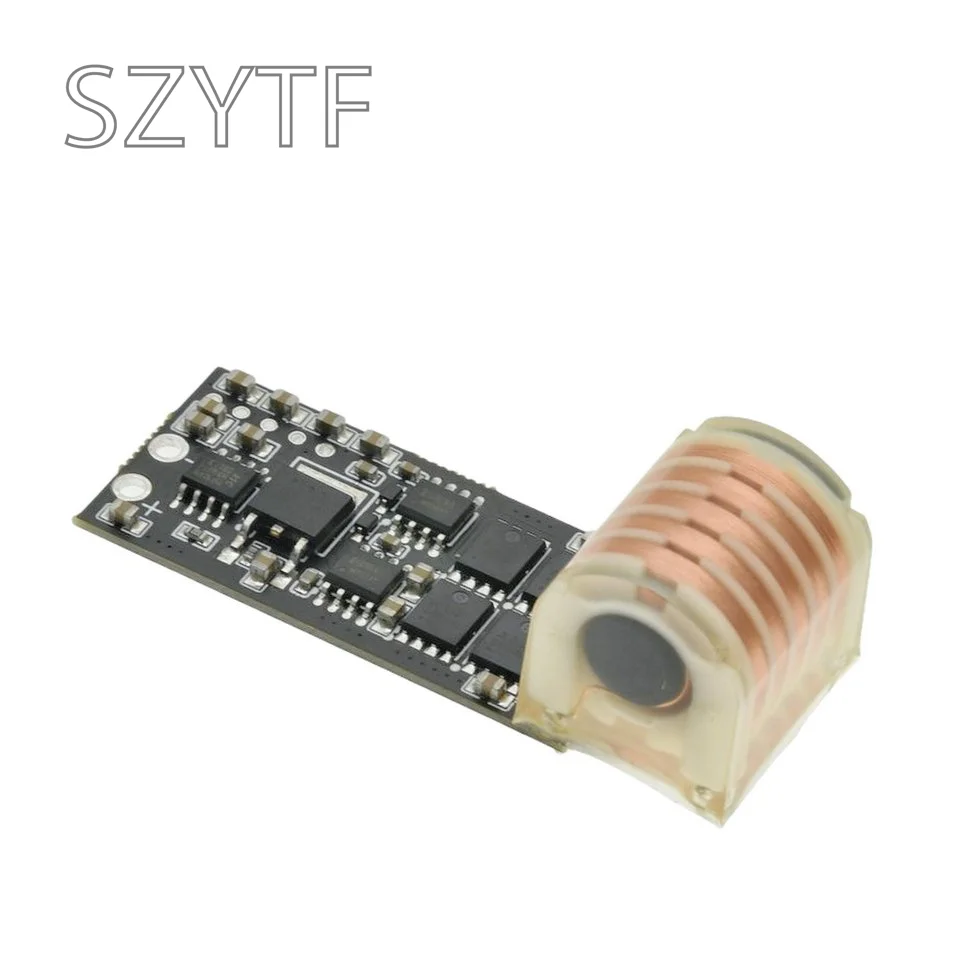

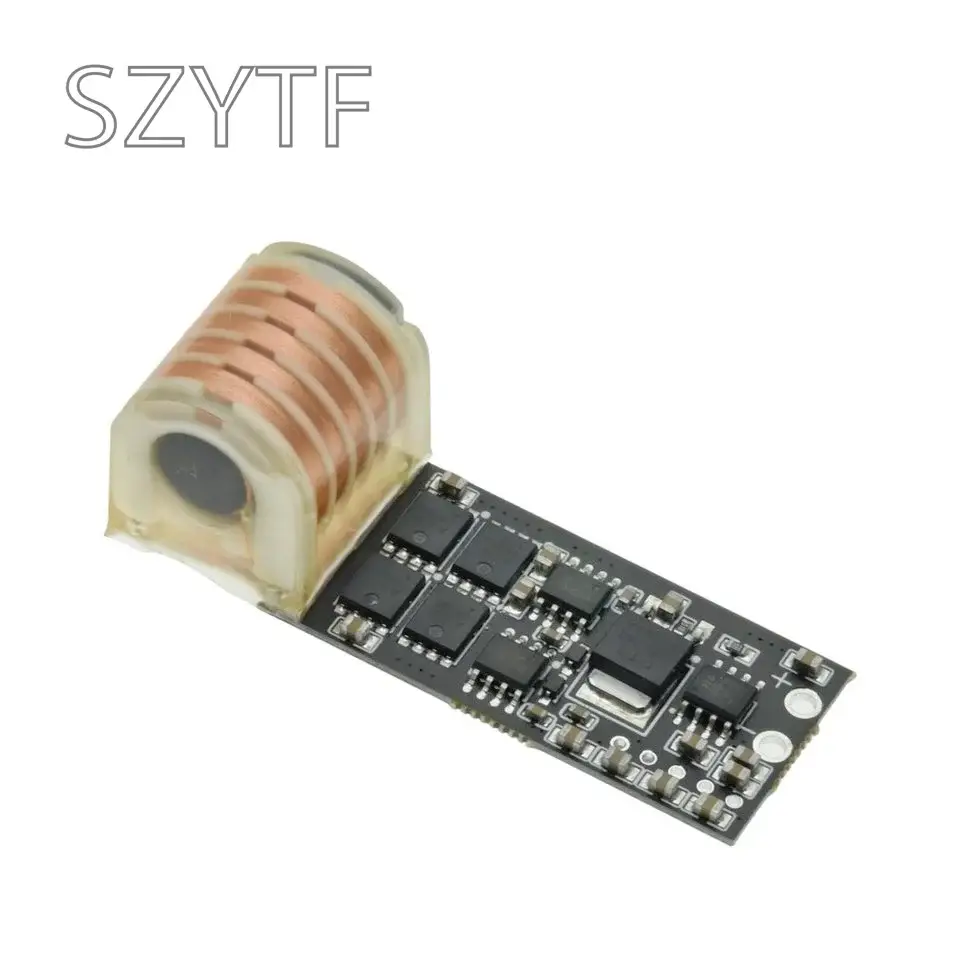

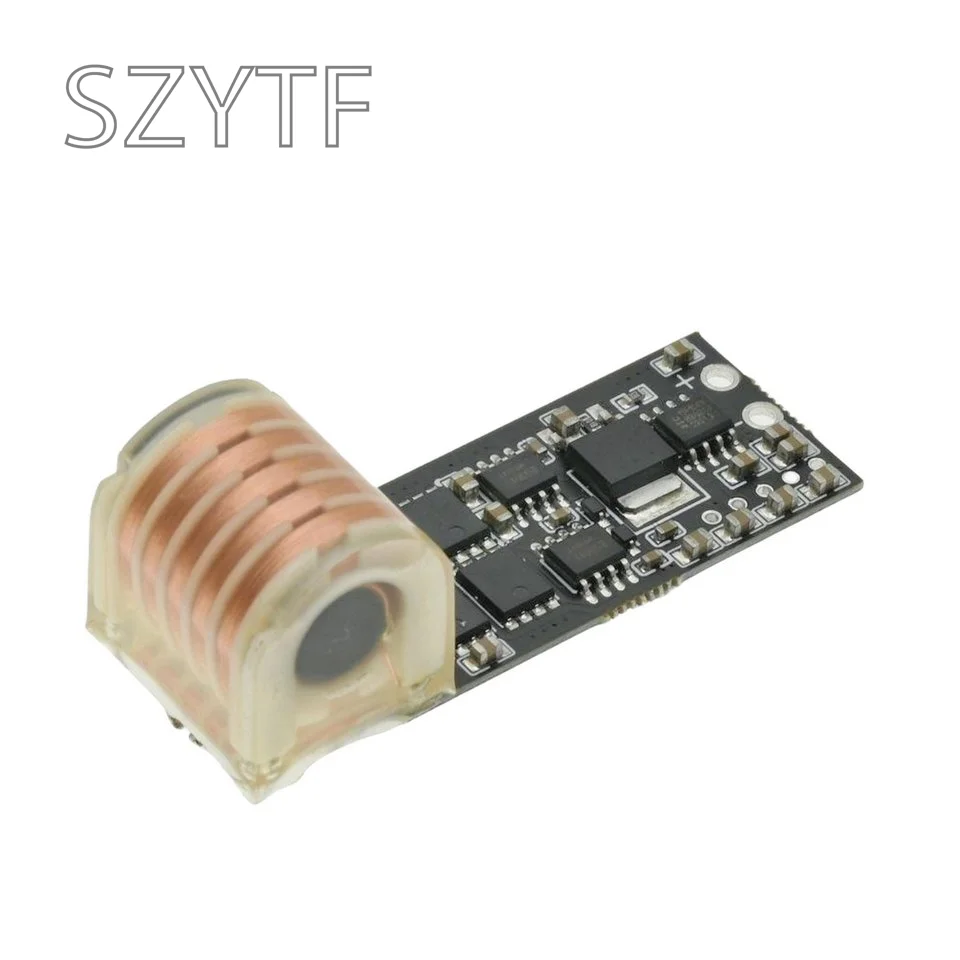

12V High-Frequency AC High Voltage Generator – 15kV-20kV Output for Ignition and Plasma Applications

12V High-Frequency AC High Voltage Generator – 15kV-20kV Output for Ignition and Plasma Applications

This High-Frequency AC High Voltage Generator Module delivers reliable performance for advanced experiments and applications. Capable of generating 15kV to 20kV output, it is perfect for ignition systems, plasma generation, and high-temperature spark arcs. Its compact design and efficient operation make it an excellent choice for engineers, hobbyists, and researchers.

Specifications:

• Input Voltage: 7V-15V (Recommended: 12V)
• Output Voltage: 15kV-20kV
• Output Current: 5mA-15mA
• Full Load Power: 50W
• Arc Distance: 1cm-2cm
• Dimensions:
  • Circuit Board: 2cm x 4.3cm
  • Overall: 2cm x 6cm x 2.5cm

Features:

• Advanced H-bridge MOS topology for high efficiency and power.
• Capable of direct arc ignition without pulling the arc.
• Produces high-temperature arcs (~1200°C) suitable for melting copper and iron.
• Compact, lightweight design with potted transformer for safety.
• Versatile applications: ignition systems, gas ignition, metal melting, and more.

Important Notes:

• For continuous operation above 9V, add a cooling fan to prevent overheating.
• Operate with caution as this product lacks a protective shell (transformer is potted).

Package Includes:

• 1 x High-Frequency AC High Voltage Generator Module
