ADF4351 RF Signal Generator – 35MHz to 4.4GHz Touch Screen PLL Sweep Frequency Generator

The ADF4351 RF Signal Generator offers precise frequency generation from 35MHz to 4.4GHz with an intuitive touch-screen interface. Designed for advanced RF applications, this generator supports frequency sweep, hopping, and fine frequency adjustments with steps as small as 0.1kHz. It features an SMA female output, a three-wire SPI control mode, and a DC 4-9V power input, making it versatile and easy to use. Perfect for RF enthusiasts, engineers, and researchers needing reliable and high-frequency signal generation.

Specifications

• Frequency Range:
  • ADF4351: 35MHz to 4.4GHz
• Power Supply: DC 4-9V (Typical 5V)

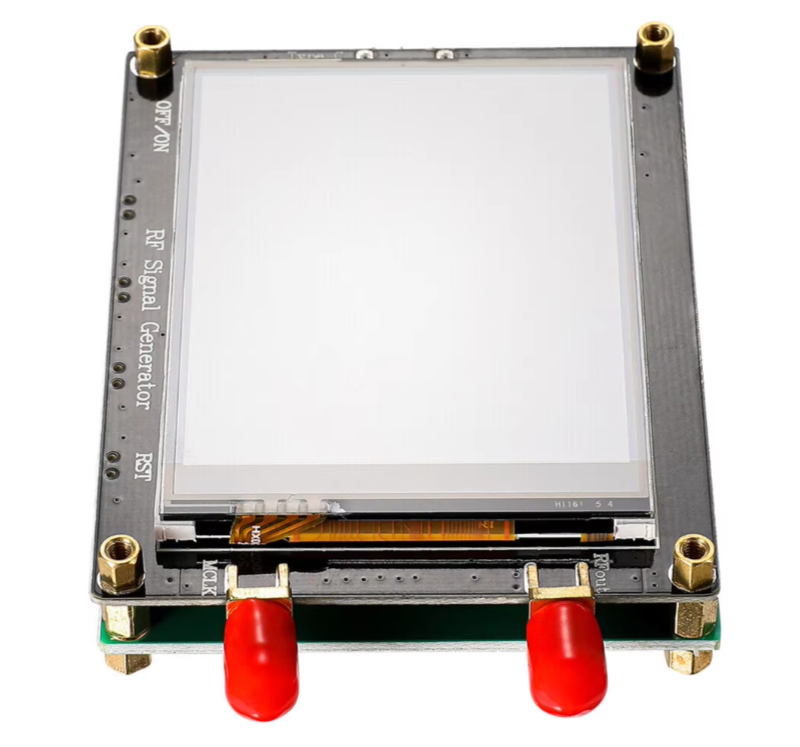

• Output Signal Interface: SMA Female
• Control Mode: Three-Wire SPI
• Output Signals:
  • 2.2GHz to 4.4GHz: Fundamental sine wave
  • 35MHz to 2.2GHz: Fundamental frequency division (square wave)
• Step Resolution: 1kHz (0.1kHz at low frequencies)
• Crystal Oscillator: ±50ppm 25MHz Imported Active Oscillator
• Color: Black

Features

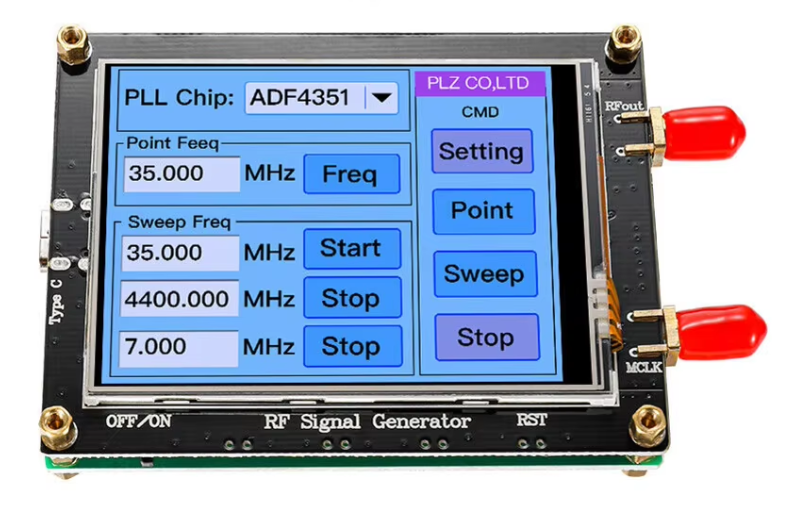

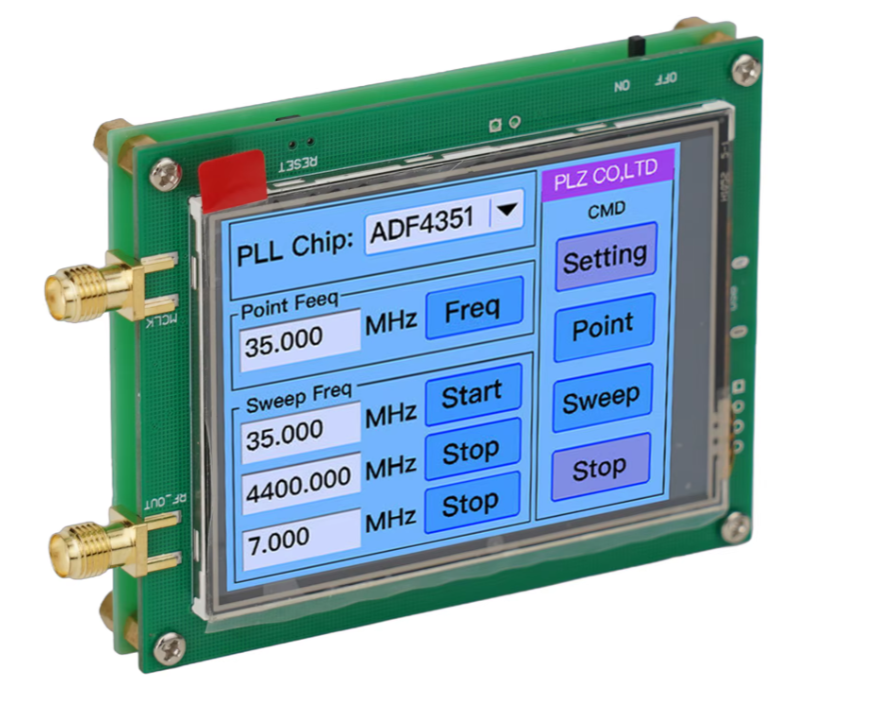

• Touch-Screen Interface: Easy-to-use touch-screen for control and configuration.
• Wide Frequency Range: 35MHz to 4.4GHz for versatile applications.
• Frequency Sweep and Hopping: Supports advanced signal modulation techniques.
• High Precision: Fine frequency adjustments with 0.1kHz steps at low frequencies.
• Compact and Portable: Ideal for on-the-go experimentation.

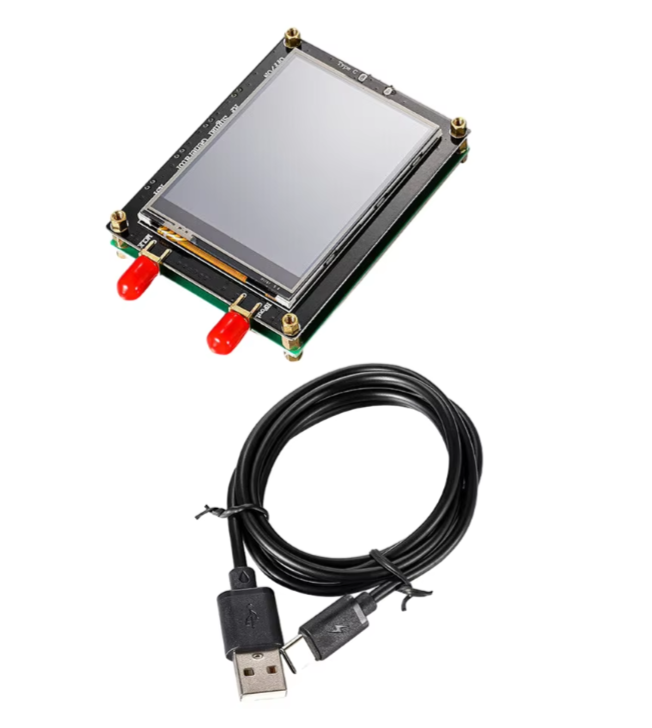

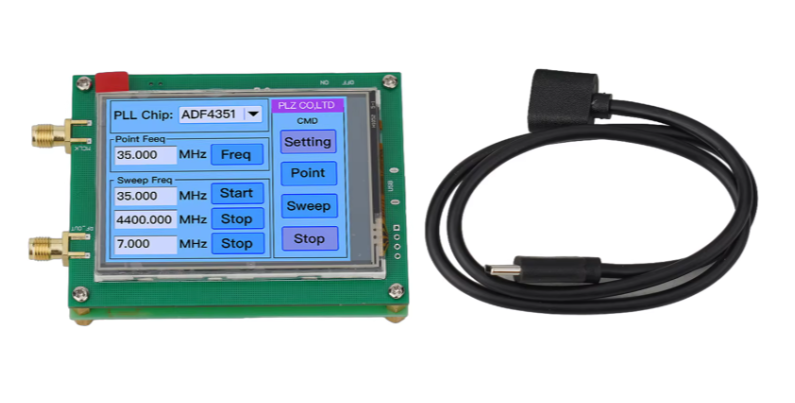

Package Includes

• 1 x ADF4351 RF Signal Generator
• 1 x USB Cable
