High Voltage Generator Module – 400KV to 1000KV, DC 3V-6V Step-Up Power Supply

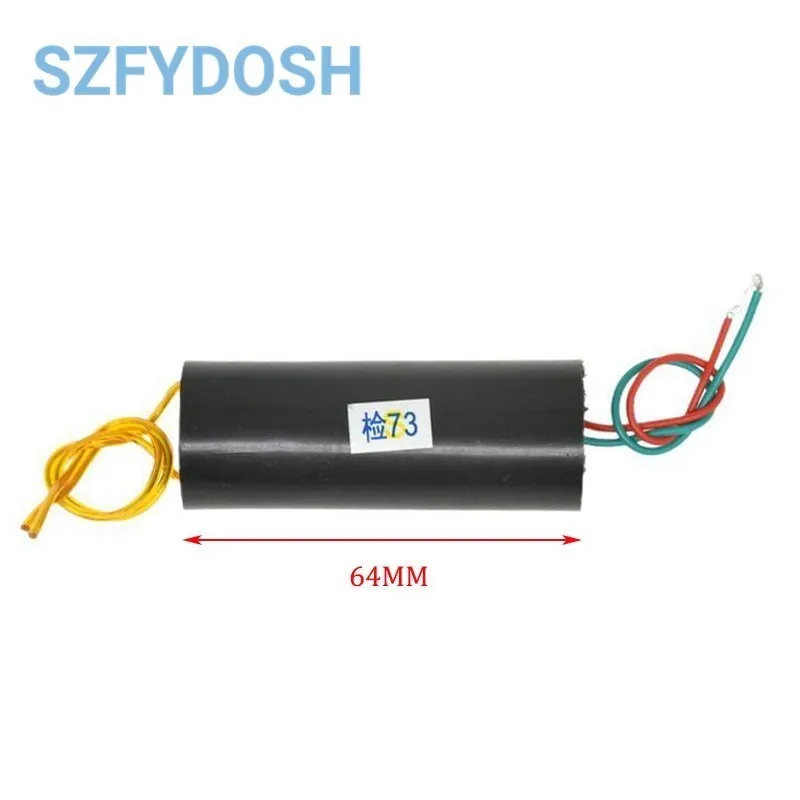

400KV Generator Specifications

• Input Voltage: DC 3V to 6V
• Input Current: 2A – 5A
• Output Voltage: 400,000V (Handle with caution)
• High Voltage Discharge Distance: 10mm – 20mm
• Output Wire Length: 100mm
• Input Power Cord Length: 100mm (Red is positive)

Wiring: Connect the power with the red line as “+” and green as “-”.

Safety Notice:

• Avoid No-Load Usage: Power must be adjusted based on the high-voltage output line distance.
• Ensure the battery capacity matches the desired arc distance.
• Intermittent Use Only: Limit continuous operation to 1 minute to prevent module damage.
• Avoid short-circuiting the output.
• Arc Distance Testing: Begin with a shorter arc distance and gradually increase.

1000KV Generator Specifications

• Model: MC-901
• Input Voltage: DC 3.7V to 7.4V
• Input Current: 0.5A – 1A
• Output Voltage: 800KV – 1000KV
• Output Current: 0.5A – 1A
• High Voltage Discharge Distance: 15mm – 20mm
• Size: 88mm x 26mm
• Output Wire Length: 16cm

Usage Instructions:

• Connect the red and green input wires to a battery (red is positive).
• Avoid operating without a load on the high-voltage side to prevent module damage.
• Use a battery with a capacity above 2000mAh for optimal performance. High-capacity batteries (4000mAh+) are recommended.

Note on Power Supply: Compatible with a single 3.7V lithium battery or two in series (such as 18650). Lead-acid, NiCd, or NiMH battery packs (4V or 6V) are also suitable, with 6V providing optimal results.

Operating Precautions:

1. No-Load Caution: Maintain an appropriate arc distance based on the power supply and battery capacity.
2. Arc Distance Testing: Gradually increase distance, staying within the module’s capacity to avoid damage.
3. Heat Management: Operate for short durations (within 10 seconds) to prevent overheating.
4. Battery Check: Measure battery voltage while operating to ensure it maintains around 6V during high-power output.

Package Includes:

• 1 x High Voltage Generator Module (3V-6V to 400KV or 3.7V-7.4V to 1000KV)
