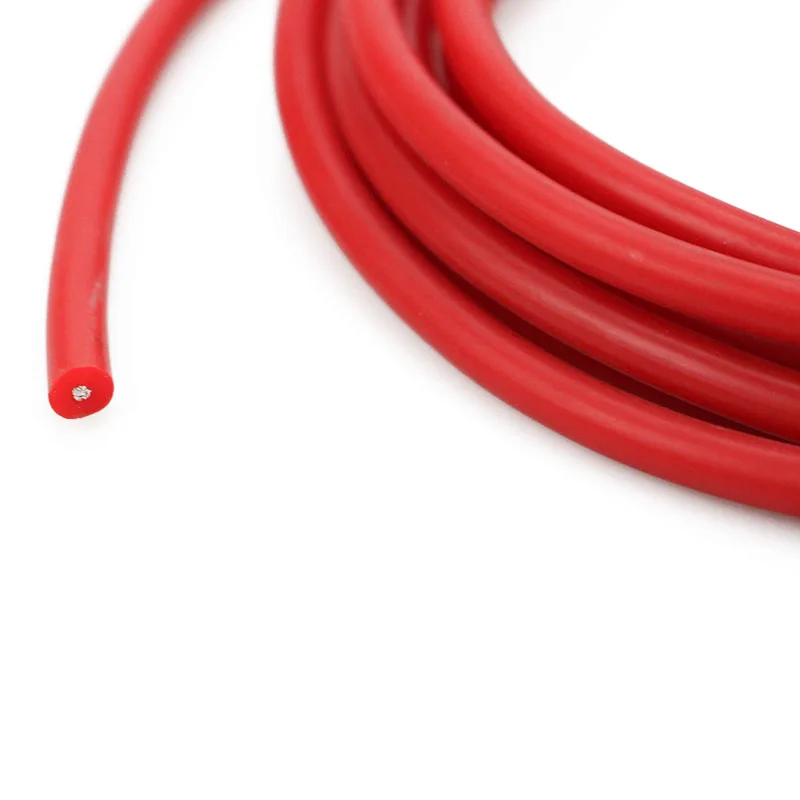

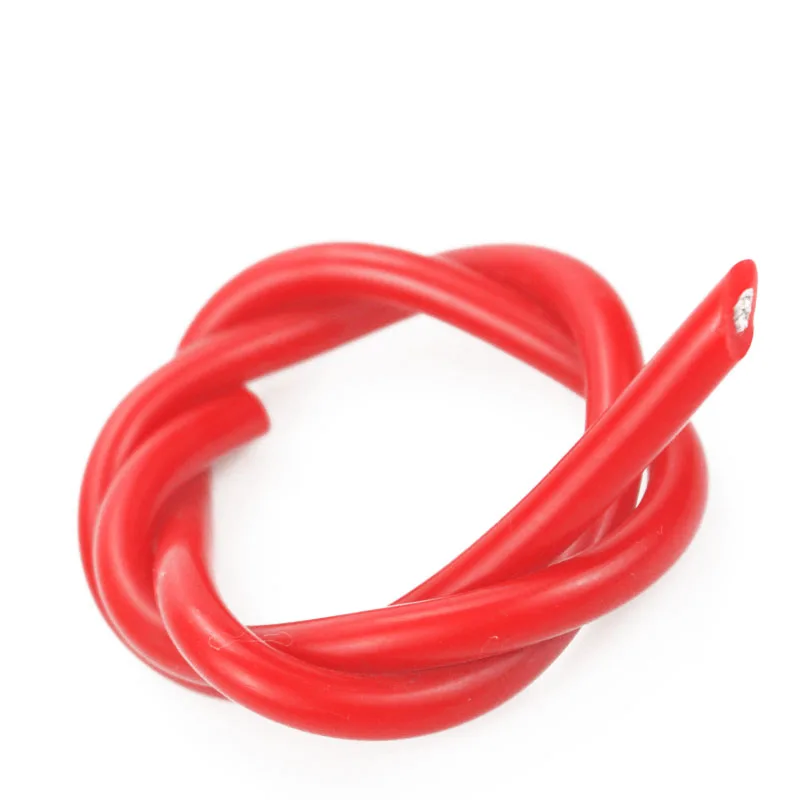

High Voltage Silicone Electric Wire – 5KV to 40KV, Tinned Copper, Flame Retardant

High Voltage Silicone Electric Wire – 5KV to 40KV, Tinned Copper, Flame Retardant

This High Voltage Silicone Electric Wire is built for safety and reliability in high-voltage environments. Featuring a tinned copper conductor and a flame-retardant silicone sheath, it ensures excellent electrical conductivity and high-temperature resistance. With voltage ratings from 5KV to 40KV and a wide range of AWG sizes, this wire is perfect for high-voltage experiments, ignition systems, and other demanding applications.

Specifications:

• Voltage Ratings: 5KV, 10KV, 15KV, 20KV, 25KV, 30KV, 40KV
• Conductor Material: Tinned Copper
• Insulation Material: Silicone Rubber (thick sheath for added protection)
• Temperature Range: -60°C to 200°C
• AWG Sizes: 9, 11, 13, 15, 17, 18, 20 AWG

Features:

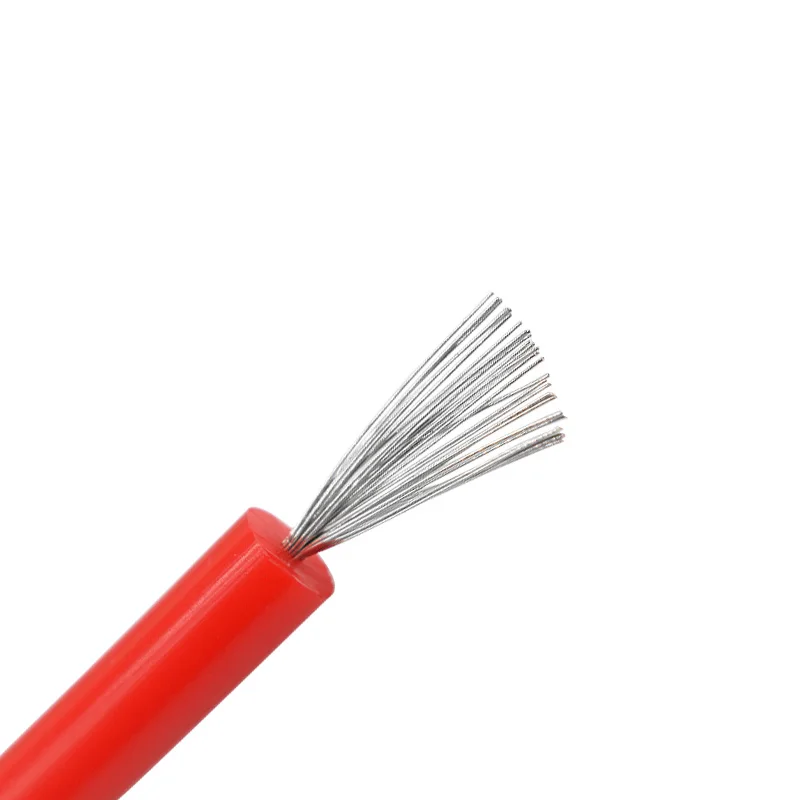

• Durable Tinned Copper: Resists corrosion and oxidation while providing stable conductivity.
• Flame Retardant Silicone Sheath: Automatically extinguishes flames for added safety.
• Flexible and Soft: Easy to route and install in tight spaces.
• High Voltage and Temperature Resistance: Perfect for challenging environments.

Applications:

• Spark plug connections.
• High-voltage equipment and ignition systems.
• Tesla coils and voltage multipliers.
• High-temperature electrical installations.

Package Includes:

• 1 x High Voltage Silicone Electric Wire (length based on selection)
